How Does a Fire Truck Fill and Discharge Water A Complete Guide

This article explains how fire trucks fill their tanks from hydrants or suitable external water sources, how the priming system works during drafting, and how the fire pump pressurizes water for discharge through hoses, nozzles, or fire monitors.

Quick Answer

A fire truck normally fills its water tank in two main ways:

1. External water supply: Water is supplied from a hydrant or another pressurized source through the truck's external filling connection.

2. Drafting from a static water source: A suction hose, strainer, fire pump, and priming system are used to draw water from a pond, river, lake, or other suitable source.

Once water is available in the onboard tank, the fire pump draws water from the tank and sends it to hose outlets, nozzles, or a fire monitor at the required pressure and flow rate.

The complete water flow path can be simplified as:

External water source → Intake/Filling system → Water tank → Fire pump → Discharge outlets

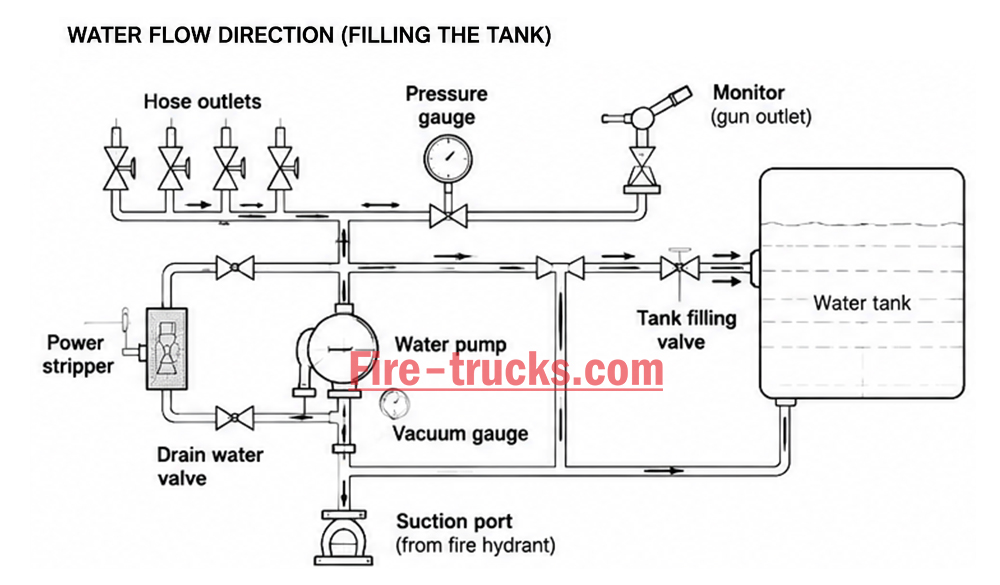

complete water flow diagram showing how fire truck moves water from intake to discharge

I. Filling the Tank from a Fire Hydrant

Connecting to a suitable fire hydrant is one of the most direct and commonly used ways to fill a fire truck's water tank when a pressurized water supply is available. It generally requires less equipment and setup than drafting from a static source.

Equipment needed: A suitable filling hose with a coupling compatible with the hydrant and the fire truck's external fill connection. Hose diameter, coupling type, and connection standards vary by vehicle, manufacturer, and region.

Step-by-step procedure:

• Connect one end of the hose to the hydrant outlet and the other end to the external fill port on the fire truck

• Open the hydrant gradually and confirm that water is flowing normally through the filling line

• Water flows into the onboard tank through the filling line under the available water supply pressure

• Monitor the tank level gauge and close the hydrant when the tank is full

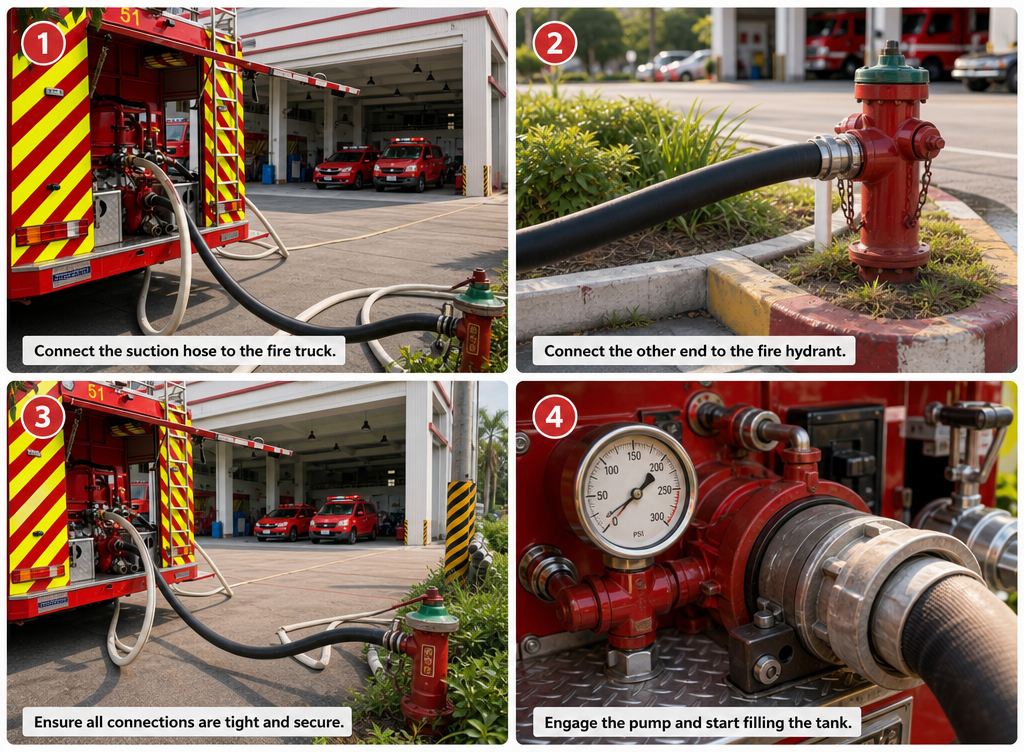

how to fill a fire truck water tank from a hydrant

Key considerations:

• Ensure the hose connection is tight to prevent leaks

• Verify that the external fill valve on the truck is fully open before starting

• Do not leave the filling operation unattended. Monitor the tank level and stop filling when the tank reaches its specified capacity to prevent overflow and unnecessary stress on the tank venting system.

II. Drafting Water from a Static Source via the Fire Pump

When a hydrant is not available—common in rural areas, forests, or industrial sites—fire trucks must draft water from static sources such as ponds, rivers, lakes, or reservoirs. This requires the fire pump's priming system to remove air from the suction line and pump casing, allowing atmospheric pressure to push water toward the pump.

Equipment needed: A suitable suction hose, suction strainer, compatible suction couplings, and a fire pump with an appropriate priming system. Suction hose diameter and connection standards vary by fire truck design and local requirements.

Step-by-Step Procedure:

➤ Step 1: Connect the suction hose to the pump inlet

Attach the suction hose to the fire pump's suction inlet. Ensure the connection is tight and properly sealed. Air leakage in the suction system is one of the most common causes of priming problems. If air enters the suction line, the pump may not be able to establish or maintain the required prime.

➤ Step 2: Set the valves correctly

• Close the tank-to-pump valve (to isolate the pump from the tank)

• Open the suction inlet valve (to open the pathway from the suction hose to the pump)

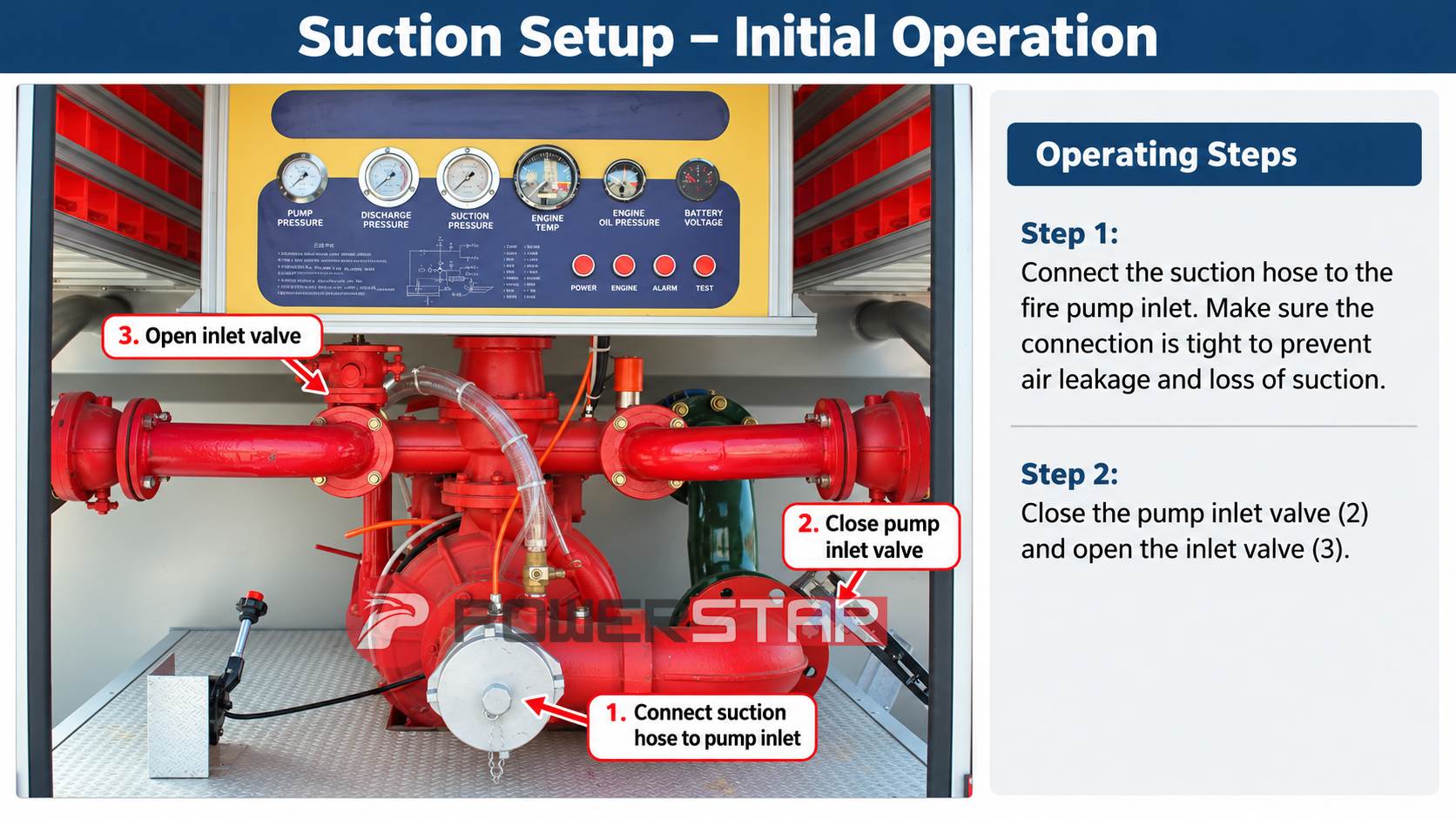

how to properly connect suction hose to fire pump inlet

➤ Step 3: Engage the power take-off (PTO)

The PTO transfers power from the vehicle's engine to the fire pump.

• Depress the clutch pedal

• Engage the PTO switch (note: PTO control arrangements vary by chassis, transmission, PTO design, and vehicle configuration. Depending on the vehicle, PTO engagement may involve pneumatic, hydraulic, electric, or mechanical controls.)

• Slowly release the clutch to engage the pump smoothly

➤ Step 4: Prime the pump

• Open the primer control valve (located on the pump panel)

• Activate the priming system to remove air from the pump and suction hose. This creates the pressure conditions needed for water to move toward the pump.

• Monitor the vacuum gauge on the pump panel

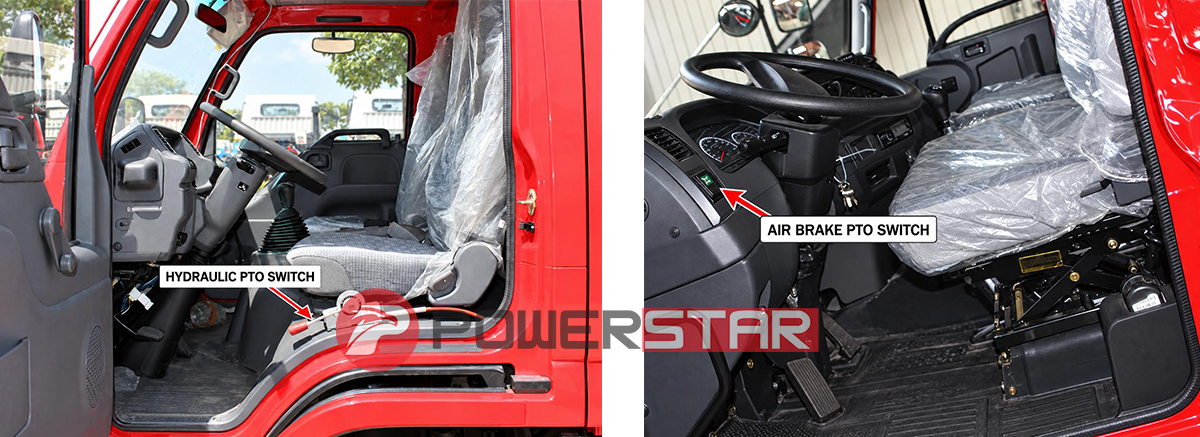

how to engage power take-off PTO on a fire truck correctly

Critical observation: The vacuum gauge should rise steadily. Monitor the vacuum gauge and continue priming until the pump establishes a stable prime. The required vacuum level varies with pump design, suction lift, atmospheric conditions, and system configuration, so operators should follow the pump manufacturer's specified priming procedure rather than relying on a single universal vacuum value.

At this point, the vacuum reading should stabilize. If the reading cannot be maintained or drops back toward zero, check for air leakage, incorrect valve positions, loss of prime, or other problems in the suction and priming system. Stop, inspect all connections, and reseal any joints before trying again.

• Once water flow is established, close the primer control valve

• Deactivate the primer

➤ Step 5: Complete the operation

• When the operation is complete, disengage the PTO according to the vehicle manufacturer's procedure. For clutch-operated systems, this may involve depressing the clutch, switching off the PTO, and then releasing the clutch.

• Close the suction inlet valve

• Open the pump drain valve to release vacuum and drain any residual water

• Disconnect the suction hose and cap all openings to prevent contamination and damage

III. Discharging Water from the Tank Through the Pump

Once water is available in the tank, the fire truck can deliver it to the firefighting system through hoses, nozzles, or fire monitors. This requires routing water from the tank through the fire pump to the discharge outlets.

Step-by-Step Procedure:

➤ Step 1: Configure the valves

• Open the tank-to-pump valve (to allow water to flow from the tank into the pump)

• Close the suction inlet valve (to prevent water from being drawn from the suction hose)

➤ Step 2: Engage the PTO

• Depress the clutch

• Engage the PTO switch

• Slowly release the clutch

➤ Step 3: Open discharge outlets and pressurize

• Open the valve for the desired discharge outlet (the valve location corresponds to the hose connection you intend to use)

• Gradually increase engine RPM as required to bring the pump pressure and flow to the levels required for the firefighting operation

• Monitor the pump pressure gauge and adjust throttle as needed to maintain consistent flow

Key operational notes:

• Avoid operating the fire pump without an adequate water supply or outside the dry-running conditions permitted by the pump manufacturer

• Adjust pump pressure according to the required flow, hose configuration, nozzle type, fire monitor, and firefighting application

• Monitor tank level—when the tank runs low, either refill via hydrant or continue drafting from a static source

IV. Common Operational Errors and Troubleshooting

Even experienced operators encounter issues. Here are the most common problems and their solutions:

Problem Likely Cause Solution：

Problem	Likely Cause	Solution
Pump fails to prime	Air leakage, incorrect valve position, or priming-system problems	Check connections, valve positions, and priming system
Vacuum gauge reads zero	Incorrect valve position or air leakage	Check valve positions and suction connections
Low water flow	Clogged strainer or restricted suction	Clean the strainer and check the suction hose
Pump loses prime	Loss of suction or air leakage	Check strainer submergence and suction connections
Pump overheating	Inadequate water supply or insufficient flow	Check water supply and increase flow as required

V. Frequently Asked Questions (FAQ)

Q1: How does a fire truck fill its water tank?

A: A fire truck can fill its tank directly through the external fill port from a hydrant, or it can draft water from natural sources such as rivers or ponds using the fire pump and priming system.

Q2: Why can't the fire truck draw water?

A: Possible causes include air leaks, incorrect valve positions, excessive lift height, clogged strainers, or a faulty priming system.

Q3: Why does the vacuum gauge needle not move during priming?

A: This may be caused by an air leak, incorrect valve position, a problem with the priming system, or another loss-of-prime condition. The most common issues are loose connections at the suction inlet, worn or damaged gaskets, or a cracked suction hose. Inspect all connections, retighten, or replace seals before trying again.

Q4: Why does the vacuum gauge reading rise and then drop back to zero?

A: A vacuum reading that rises and then falls may indicate air leakage or another loss-of-prime condition. Check the suction hose connections, valve positions, strainer, pump seals, and priming system. Common causes include loose suction hose fittings, the strainer partially above water, or damaged pump seals. Stop the operation, locate the leak, and re-prime.

Q5: Why can't the PTO engage?

A: Possible causes include an incorrect clutch or transmission state, insufficient pneumatic or hydraulic pressure where applicable, an electrical control issue, or a PTO mechanical fault. The exact troubleshooting procedure depends on the chassis and PTO configuration. First, confirm the clutch is fully depressed, check vehicle air or hydraulic pressure, and if the issue persists, contact a technician.

Q6: Why does the nozzle stream suddenly lose range during discharge?

A: Possible causes include low tank water level, a clogged suction strainer restricting intake, kinked or crushed hose sections increasing friction loss, or worn pump impellers reducing pressure. Check water level, strainer, hose condition, and pump performance sequentially.

Q7: How do you prevent water from freezing inside the fire pump in winter?

A: After each operation, open the pump drain valve and all discharge valves to remove residual water from the pump and piping. Follow the pump manufacturer's winterization procedure; where permitted by the manufacturer, compressed air may be used to remove remaining moisture.

Q8: Can a fire truck discharge water while moving?

A: Some vehicles support pump-and-roll capability, typically used for wildland firefighting or large-area fire suppression. This operation requires specific PTO configurations and drive system compatibility, and must be performed strictly within the vehicle's technical limits and operating procedures.

VI. Summary

The fire truck water supply system consists of several integrated components: the water tank, external fill port, suction hose and strainer, fire pump, priming system, PTO, valves, and discharge piping.

The entire water flow process can be summarized as:

Filling → Priming → Pressurizing → Discharging

Whether the fire truck receives water from a municipal hydrant or drafts water from a suitable static source, the fire pump plays a central role in moving water through the firefighting system and delivering the required flow and pressure to the discharge outlets.
