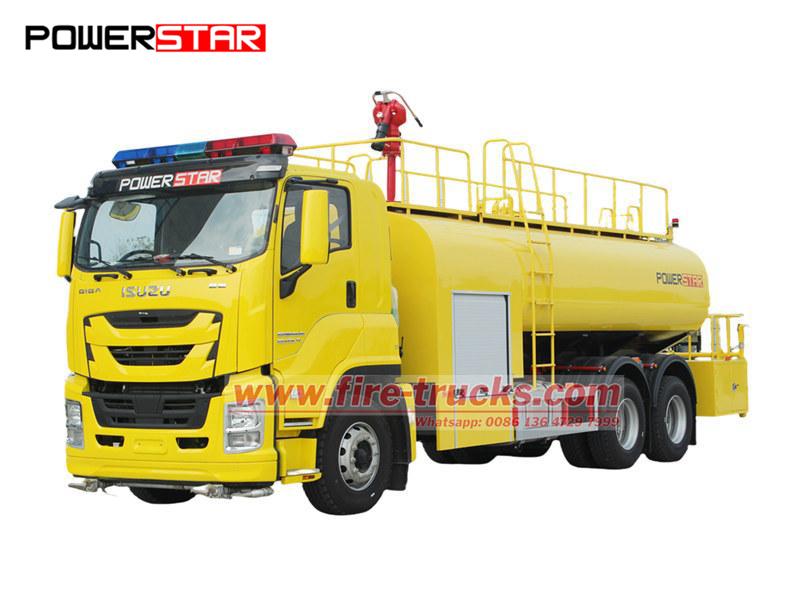

Filipijnse ISUZU GIGA heavy duty watertender

The Isuzu GIGA 4.5 CBM foam fire truck uses the Isuzu GIGA 4x2 Class II fire truck chassis, with a 4600mm wheelbase, an Isuzu 6UZ1-TCG50 engine, and a FAST 12-speed gearbox. The front of the superstructure houses the equipment compartment, with a 4 cubic meter carbon steel water tank and a 500L stainless steel foam tank in the middle. The rear houses the pump room, equipped with a CB10/60-RS fire pump, control panel, fire hoses, and a PL8/48 fire monitor mounted on the roof.

The Fire Truck Foam Cannon PL48 is a manual fire monitor that can spray both foam and water. It has a rated flow rate of 48 L/s, a rated pressure of 0.8 MPa, a water spray range of ≥70 m, and a foam spray range of ≥60 m. The monitor can rotate 360° horizontally and has an elevation angle of -30° to 70°, offering flexible operation.

The Howo TX460 6x4 12 cbm foam fire truck adopts a Sinotruk TX 6x4 cab, with a 4600+1400mm wheelbase, and is equipped with a SINOTRUK MC11.46-61 engine and an HW19710 gearbox. The front of the superstructure houses an equipment compartment for storing various firefighting equipment, while the middle section contains a 9 cubic meter carbon steel water tank and a 3 cubic meter foam tank. The rear section houses the pump room, equipped with a CB10/60-RS fire pump, a control panel, and some auxiliary firefighting equipment. The water and foam tanks on the roof are equipped with manholes, and a PL8/48 fire monitor is also included.

Brandweerwagenbrandpomp CB10 140 Als kernuitrusting in brandbestrijdingssystemen worden centrifugaalpompen voor brandweerwagens veel gebruikt vanwege hun efficiënte waterlevering en diverse brandbestrijdingsbehoeften. Met hun hoge debiet en grote opvoerhoogte worden centrifugaalpompen veel gebruikt in conventionele brandbestrijdingsscenario's, zoals brandbestrijding in steden en gebouwen.

De HOWO 4×4 brandweerwagen is een professioneel brandweervoertuig, gebouwd op basis van het SINOTRUK HOWO 4×4 off-road chassis. Hij is uitgerust met een hoogwaardige brandpomp, een watertank van 6 kubieke meter en een schuimtank van 2 kubieke meter, plus een blusmonitor die water tot 70 meter ver kan spuiten en een modulaire uitrustingsruimte. Aangedreven door een motor van 380 pk, met een parttime vierwielaandrijving en off-road banden, toont dit voertuig uitstekende terreinmobiliteit. Speciaal ontworpen voor uitdagende brandbestrijdingsscenario's zoals bosbranden, petroleumbranden, geologische rampen en smalle stedelijke gebieden, dient het als een snel reagerend mobiel brandbestrijdingsvoertuig.

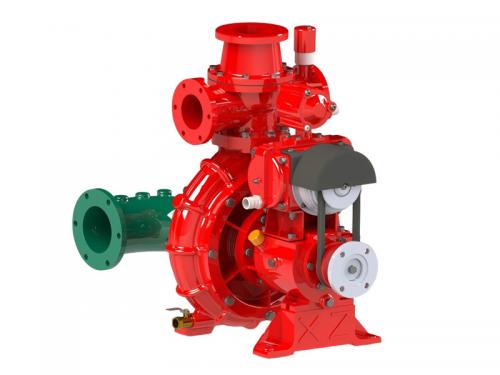

The CB10 30 fire pump adopts a single-stage centrifugal pump structure with a two-piston priming device. The priming device is activated by the pump's rotation and automatically disengages once the required pressure is reached. The product operates stably and is reliable in quality, with various inlet and outlet pipe options available.

The Howo TX 4x2 7.5 cubic meter foam fire truck uses the Howo TX chassis with a 4700mm wheelbase. It is equipped with a Weichai WP4.6NQ240E62 engine and a Sinotruk HW95508STCL gearbox. The front of the superstructure is an equipment box for storing auxiliary firefighting equipment. The middle section contains a 5.5 cubic meter carbon steel water tank and a 2 cubic meter stainless steel foam tank. The rear pump room is equipped with a CB10/40-LC(BS) fire pump, control panel, firefighting equipment, PL8/32 fire monitor on the tank top, and two European standard manholes.

This Isuzu pickup fire truck is based on the Isuzu TAGA QL1030CZHW2 Luxury Edition 3.0T diesel 143hp four-wheel drive double-cab pickup chassis, It is equipped with an Isuzu 4HK1CT6H1 engine and an MLB 5-speed transmission. The front of the superstructure features a 500L carbon steel water tank and a 100L stainless steel foam tank. The rear houses the pump room, equipped with a JBQ4.5/9 hand pump, a 50m electric hose reel, and a PH64 foam-water mixing proportioner. The roof features a PS8/20W fire monitor, ladder, manhole, and fire alarm lights.
